VCR: Learning Predictive Visuomotor Coordination

Wenqi Jia1, Bolin Lai2, Xu Cao1, Miao Liu3, Danfei Xu2, James M. Rehg1,
1University of Illinois Urbana-Champaign 2Georgia Tech 3Meta AI
Paper Supp Demo Code

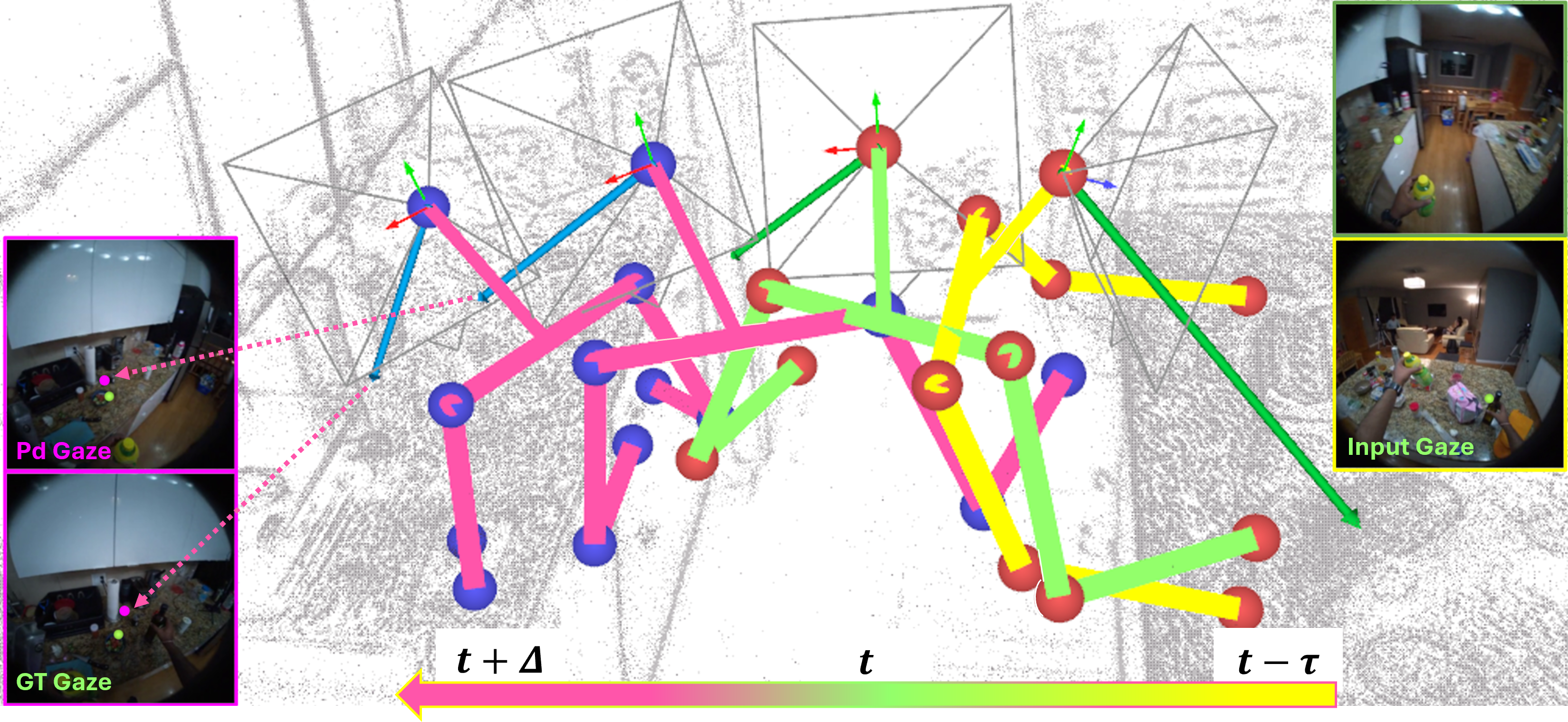

VCR teaser figure showing predictive visuomotor coordination.

We represent the human visuomotor system as a joint encoding of head pose, 3D gaze endpoints, and upper-body joints. Given past visuomotor observations and egocentric frames, our goal is to predict how the system coordinates its future movements.

Abstract

Understanding and predicting human visuomotor coordination is crucial for applications in robotics, human-computer interaction, and assistive technologies. Our work introduces a forecasting-based task for visuomotor modeling, where the goal is to predict head pose, gaze, and upper-body motion from egocentric visual and kinematic observations.

We propose a Visuomotor Coordination Representation (VCR) that learns structured temporal dependencies across these multimodal signals. We extend a diffusion-based motion modeling framework that integrates egocentric vision and kinematic sequences, enabling temporally coherent and accurate visuomotor predictions.

Our approach is evaluated on the large-scale EgoExo4D dataset, demonstrating strong generalization across diverse real-world activities. Our results highlight the importance of multimodal integration in understanding visuomotor coordination, contributing to research in visuomotor learning and human behavior modeling.

Method

Visuomotor Coordination Representation

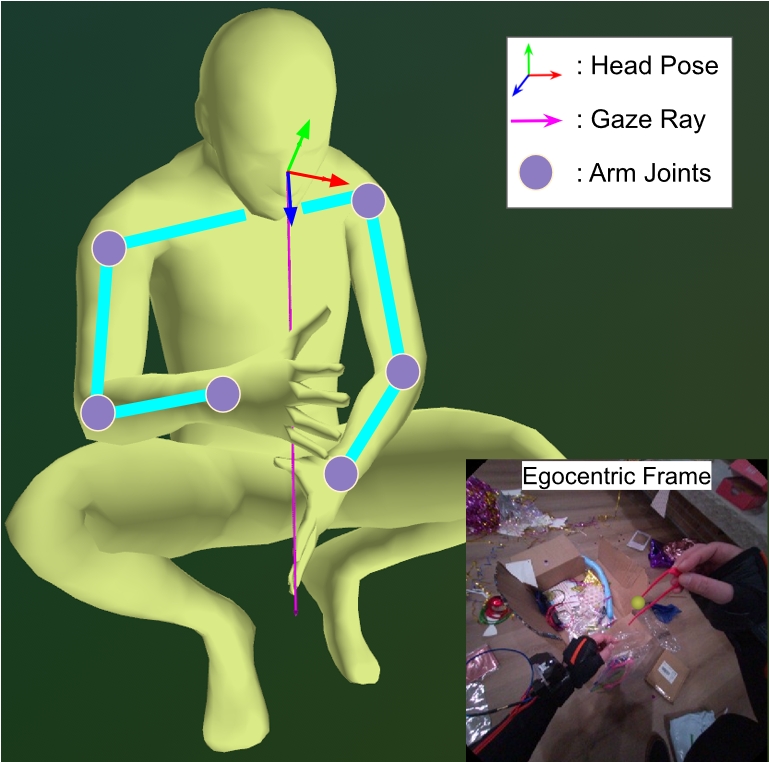

Figure 2: Visuomotor Coordination Representation.

At each timestep, the visuomotor state is defined as St = {Ht, Gt, Ut}, where Ht is head pose, Gt is the 3D gaze endpoint, and Ut denotes upper-body joint positions.

Visuomotor State Canonicalization

Figure 3: Canonicalization pipeline.

Visuomotor states are aligned to the reference frame of the last observed head pose, allowing the model to learn relative motion patterns independent of global movement.

Model Architecture

Figure 4: Multimodal diffusion model architecture.

Kinematic features and egocentric visual embeddings are fused through structured head-gaze and head-gaze-arm pathways, then processed by a temporal encoder and diffusion denoiser to forecast future visuomotor states.

Qualitative Results

Predicted visuomotor coordination across diverse real-world activities from EgoExo4D. Each demo visualizes the coupled evolution of head pose, 3D gaze endpoints, and upper-body motion.

Bike Fixing

A precise turn with head and gaze fixed on the bike tire.

Both hands are raised at the end of forecasting, as in the ground-truth egocentric observation.

Despite drastic movement, gaze leads the direction.

Cooking

Head and gaze shift along the upper-body movement.

Naturally adjusting visuomotor coordination in response to an unusual pose.

Correctly turns left at the end of forecasting.

Heading to the left and raising the left arm.

Basketball

The player is prepared to catch the ball at the end of forecasting.

Head and gaze cue the mid-range jump shooting.

Catches the dropping ball and continues with a Mikan layup.

COVID Test

Attention shifts and returns during the health-related task.

BibTeX


      @inproceedings{jia2026learning,
      title={Learning predictive visuomotor coordination},
      author={Jia, Wenqi and Lai, Bolin and Cao, Xu and Liu, Miao and Xu, Danfei and Rehg, James M},
      booktitle={Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition},
      pages={3609--3619},
      year={2026}
    }
